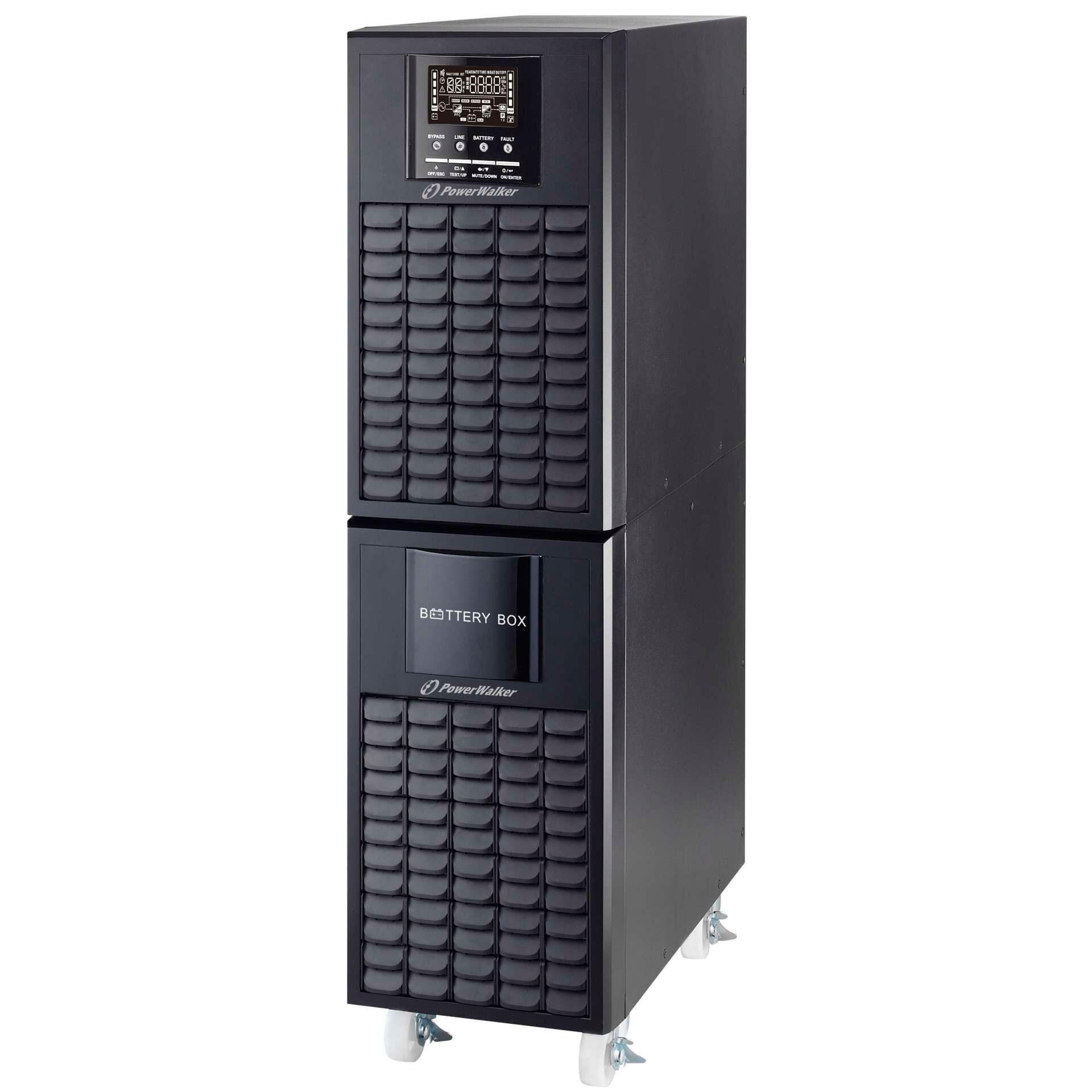

PowerWalker VFI 6000 CG PF1

Unity Power Factor (kVA = kW)

Professional solution for commercial application

Generator-compatible and very low Total Harmonic Distortion on output voltage

EPO Function (Emergency Power Off)

The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA are equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%).

Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software.

General features

Type Online

Power capacity 6000VA / 6000W

Output Power Factor 1.00

Input

Input Voltage Range 110-300 VAC @ 0-60% load

140-300 VAC @ 60-80% load

176-300 VAC @ 80-100% load

Max THDi ≤4% @ 100% load; ≤6% @ 50% load

Input PF ≥ 0.99 at full load

Frequency Range 46Hz
54Hz or 56Hz
64Hz

Frequency (Synchronized Range) 46Hz
54Hz or 56Hz
64Hz

Output

Nominal Output Voltage 208/220/230/240 VAC

Pure Sine Wave Yes

THDv ≤1% Full Linear Load; ≤4% Non-Linear Load

Voltage Regulation (Bat. Mod.) ±1%

Frequency (Battery Mode) ±0,1Hz

Technical details

Load Crest Ratio 3:1

Transfer Time [AC to Battery] 0ms

Transfer Time [Inverter to Bypass] 0ms

Generator support Yes

Overload Capacity Line: 10min @100%-110%; 1min @110%-130%; 1s @>130%; BAT: 30s @100%-110%; 10s @110%-130%; 1s @>130%

External Battery Connection Yes

Charger 1A / 2A / 4A (adjustable)

Fan Logic Always on, automatic speed control

Efficiency

LINE mode full Load 94.0%

BATTERY mode full Load 91.0%

Batteries and autonomy time

Batteries 20x 12V/9Ah

DC Voltage 20 x 12V

Recharge Time 9h to 90%

Full Load Backup Time 6.5min

Half Load Backup Time 17min

Connections and communication

Terminal Output 1

Input Terminal

Software ViewPower

USB port Yes

RS-232 Port Yes

Extension Slot Yes, 1

EPO Port Yes

Environment

Noise Level < 55dB

Temperature 0°C – 40°C

Humidity 20%
95% RH (non-condensing)

Logistics

IEC 62040-3 classification VFI-SS-111

Package Content UPS, Manual, USB Cable

Manual Languages EN/DE

EAN 4260074978650

Width 190 mm

Height 688 mm

Depth 442 mm

Weight 64 kg

Giftbox
Width 280 mm

Giftbox
Height 785 mm

Giftbox
Depth 485 mm

Giftbox
Weight 63 kg

Pcs. per box 1

Pcs. per layer 8

Pcs. per pal 8
