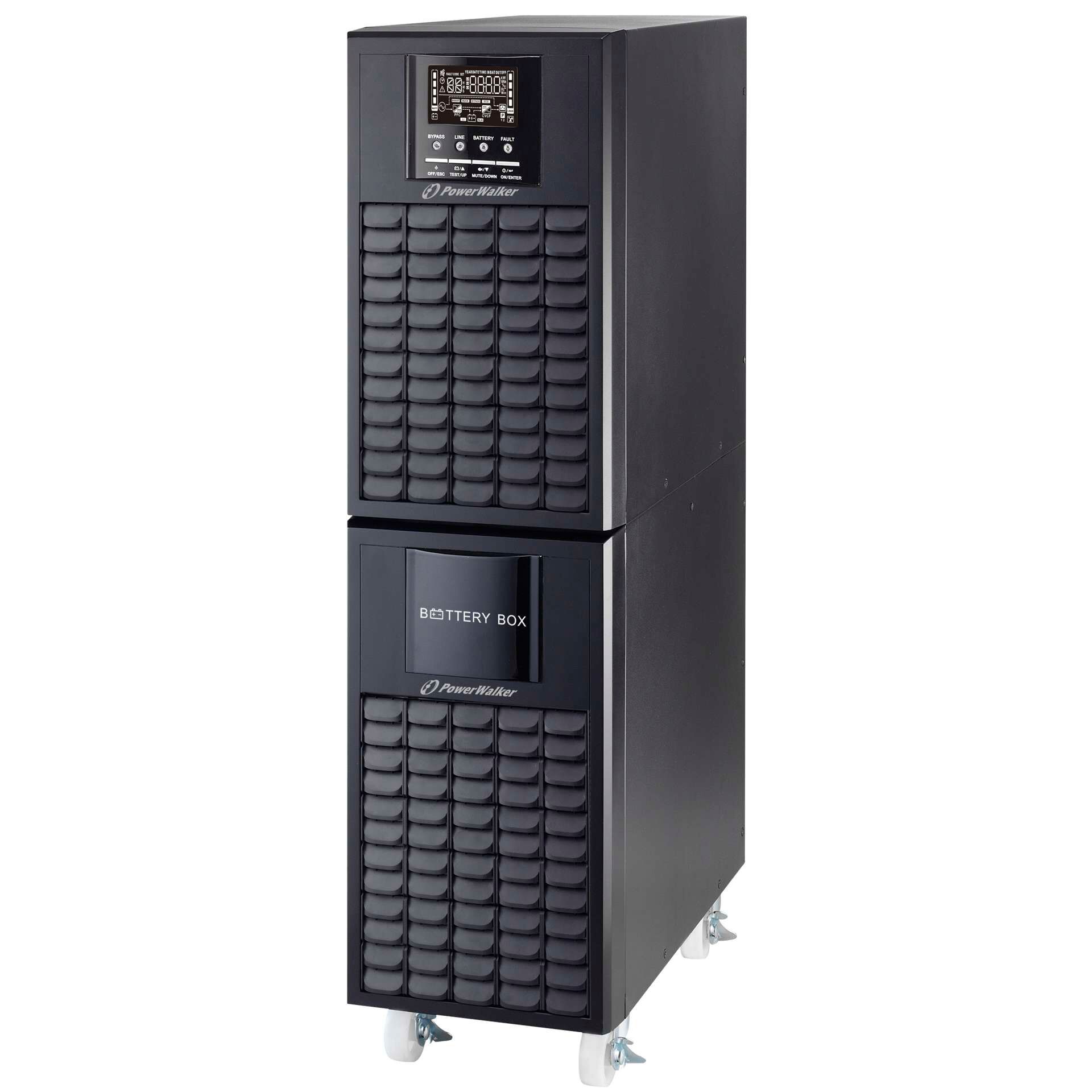

PowerWalker VFI 10000 CG PF1

3 ΧΡΟΝΙΑ ΕΓΓΥΗΣΗ ΕΛΛΗΝΙΚΗΣ ΑΝΤΙΠΡΟΣΩΠΕΙΑΣ

POWERWALKER VFI 10000 CG PF1

10000VA / 10000W Online UPS with Power Factor 1

Terminal Input, Terminal Outlet

Batteries included: 20x 12V/9Ah and external battery connection

Unity Power Factor

Professional solution for commercial application

Programmable output voltage and frequency

Generator-compatible and very low Total Harmonic Distortion on output voltage

EPO Function (Emergency Power Off)

The PowerWalker VFI 6000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0), very low harmonic distortions (<1%) and high efficiency (up to 94%). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support.

Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software.

TECHNICAL SPECIFICATION

General features

Type Online

Power capacity 10000VA / 10000W

Output Power Factor 1.00

Input

Input Voltage Range 110-300 VAC @ 0-60% load

140-300 VAC @ 60-80% load

176-300 VAC @ 80-100% load

Max THDi ≤4% @ 100% load; ≤6% @ 50% load

Input PF ≥ 0.99 at full load

Frequency Range 46Hz
54Hz or 56Hz
64Hz

Frequency (Synchronized Range) 46Hz
54Hz or 56Hz
64Hz

Output

Nominal Output Voltage 208/220/230/240 VAC

Pure Sine Wave Yes

THDv ≤1% Full Linear Load; ≤4% Non-Linear Load

Voltage Regulation (Bat. Mod.) ±1%

Frequency (Battery Mode) ±0,1Hz

Parallel Work Up to 3 units of the same size

Technical details

Load Crest Ratio 3:1

Transfer Time [AC to Battery] 0ms

Transfer Time [Inverter to Bypass] 0ms

Generator support Yes

Overload Capacity Line: 10min @100%-110%; 1min @110%-130%; 1s @>130%; BAT: 30s @100%-110%; 10s @110%-130%; 1s @>130%

External Battery Connection Yes

Charger 1A

Fan Logic Always on, automatic speed control

Efficiency

LINE mode full Load 94%

BATTERY mode full Load 91%

Batteries and autonomy time

Batteries 20x 12V/9Ah

DC Voltage 20 x 12V

Recharge Time 9h to 90%

Full Load Backup Time 2.8 min.

Half Load Backup Time 8.4 min.

Connections and communication

Terminal Output 1

Input Terminal

Software ViewPower

USB Yes

RS-232 Yes

Intelligent Slot Yes, 1

EPO Yes

Environment

Noise Level < 58dB

Temperature 0°C – 40°C

Humidity 20%
95% RH (non-condensing)

Logistics

IEC 62040-3 classification VFI-SS-111

Package Content UPS, Manual, Software CD, USB Cable

Manual Languages EN/DE

EAN 4260074978667

Width 250 mm

Height 576 mm

Depth 592 mm

Weight 83 kg

Giftbox Width 310 mm

Giftbox Height 785 mm

Giftbox Depth 570 mm

Giftbox Weight 88 kg

Pcs. per box 1
