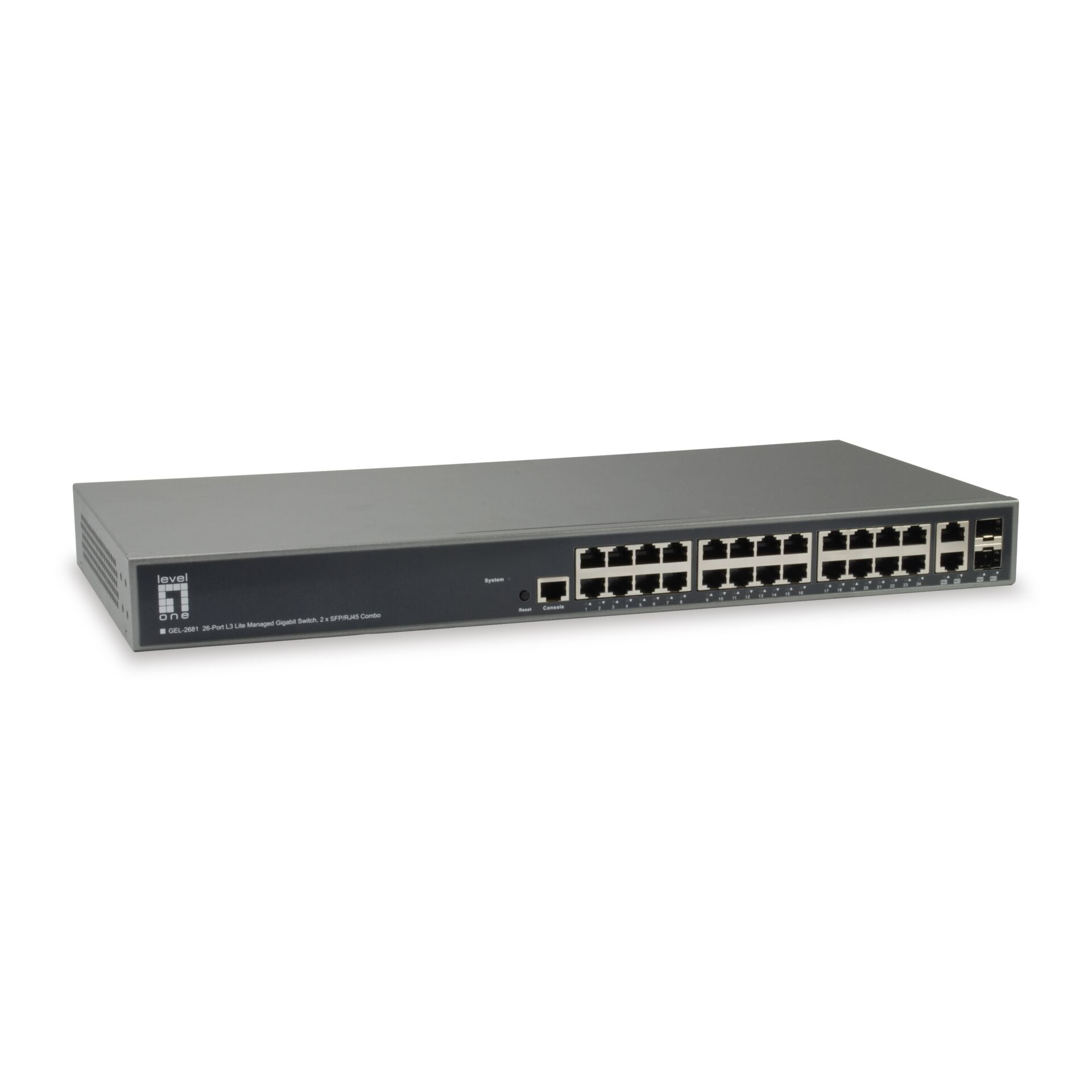

LevelOne GEL-2681 TURING 26-Port L3 Lite Managed Switch

Τεχνικές προδιαγραφές

Γενικά

Device Type

Switch
26 ports
L3 Lite
Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 2 x combo Gigabit SFP

Εκτέλεση

Switching bandwidth: 52 Gbps ¦ Forwarding performance: 38.7 Mpps

MAC Address Table Size

8K entries

Jumbo Frame Support

9600 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, HTTP, SSH

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+

Χαρακτηριστικά

VΔίκτυο support, IGMP snooping, port mirroring, IPv6 support, firmware upgradable, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, DHCP server, IPv4 support, LLDP support, DHCP client, Energy Efficient Ethernet, 512KB packet buffer, Generic VΔίκτυο Registration Protocol (GVRP), Storm Control, Network Timing Protocol (NTP)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az

RAM

128 MB

Flash Μνήμη

32 MB

Status Indicators

System, link/activity/speed

Συνδεσιμότητα

Interfaces

26 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45

Power

Συσκευή ισχύος

Internal power supply

Voltage Required

AC 120/230 V (50
60 Hz)

Power Consumption Operational

16.79 Watt

Miscellaneous

Καλώδιοs Included

1 x console cable

Rack Mounting Kit

Included

Compliant Standards

FCC Part 15 A, LVD

Διαστάσεις & Βάρος

Πλάτος

44.2 cm

Βάθος

21.1 cm

Ύψος

4.4 cm

Βάρος

2.6 kg

Περιβαλλοντικές παράμετροι

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10
90% (non-condensing)

Min Αποθήκευση Temperature

-20 °C

Max Αποθήκευση Temperature

70 °C

Humidity Range Αποθήκευση

10
90% (non-condensing)
