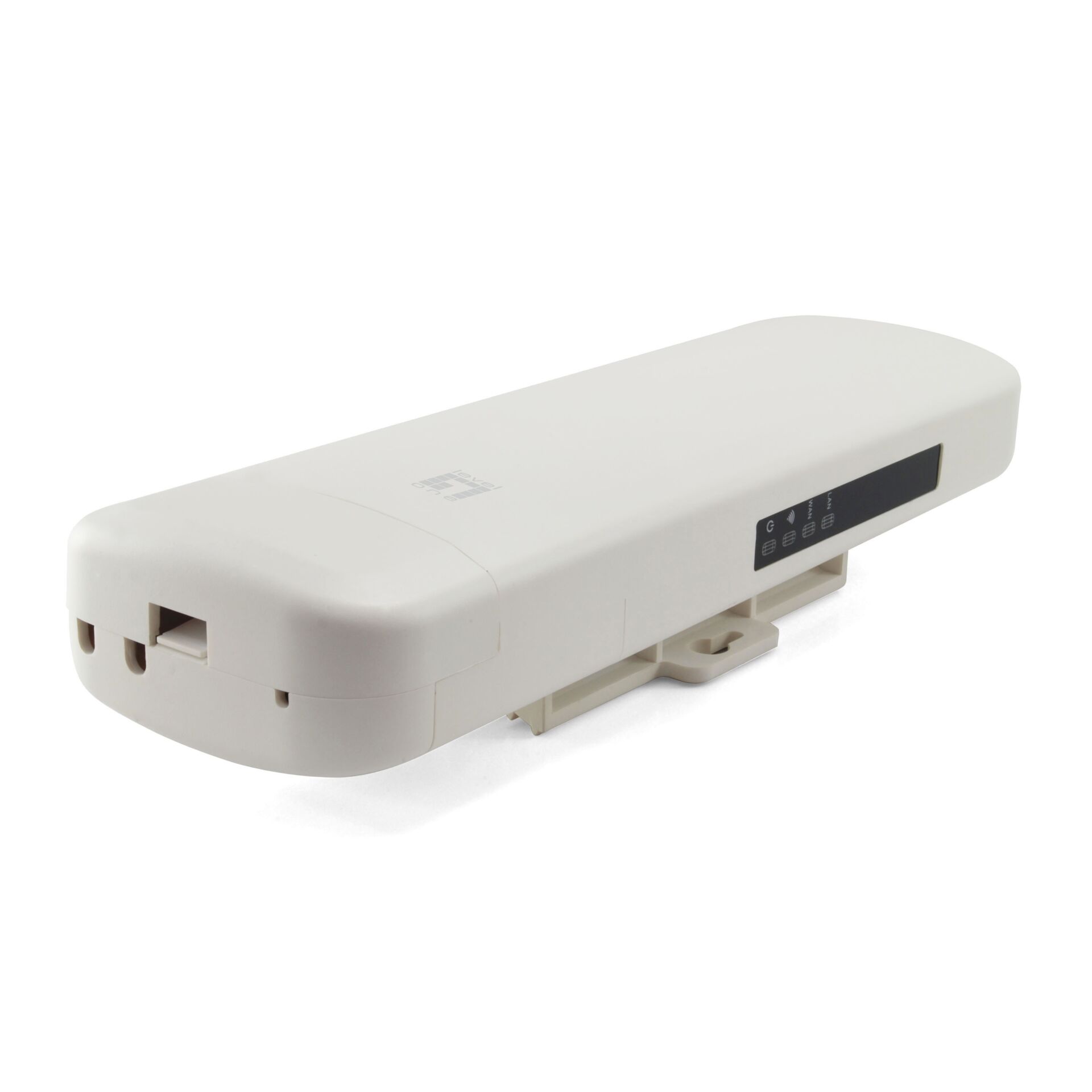

LevelOne WAB-6010 N300 Outdoor PoE Wireless (WLAN)

Τεχνικές προδιαγραφές

Γενικά

Device Type

Radio access point

Ruggedized Design

Outdoor

Πλάτος

25.7 cm

Βάθος

8.7 cm

Ύψος

3.8 cm

Βάρος

400 g

Δικτύωση

Form Factor

External

Συνδεσιμότητα Technology

Wireless

Data Transfer Rate

300 Mbps

Line Coding Format

DBPSK, DQPSK, CCK, 64 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz

Capacity

Maximum number of clients: 64 ¦ Recommended number of clients: 50

Status Indicators

Power, status, link/activity

Χαρακτηριστικά

Flow control, auto-uplink (auto MDI/MDI-X), repeating mode, Syslog support, manageable, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Quality of Service (QoS), Wi-Fi Protected Setup (WPS), reset button, weatherproof, port based access control

Encryption Algorithm

128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2, WPA-PSK, 128-bit AES, WPA2-PSK

Authentication Method

Radio Service Set ID (SSID)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.3af, IEEE 802.3x, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11e, IEEE 802.11n, IEEE 802.3at

Aerial

Antenna

External detachable

Antenna Qty

2

Gain Level

5 dBi

Συνδεσιμότητα

Interfaces

1 x 100Base-TX
RJ-45 (WAN) ¦ 1 x 100Base-TX (PoE)
RJ-45

Miscellaneous

Compliant Standards

FCC, IP65

Power

Power Over Ethernet (PoE) Supported

PoE+

Περιβαλλοντικές παράμετροι

Min Operating Temperature

-40 °C

Max Operating Temperature

55 °C

Humidity Range Operating

10
90%
