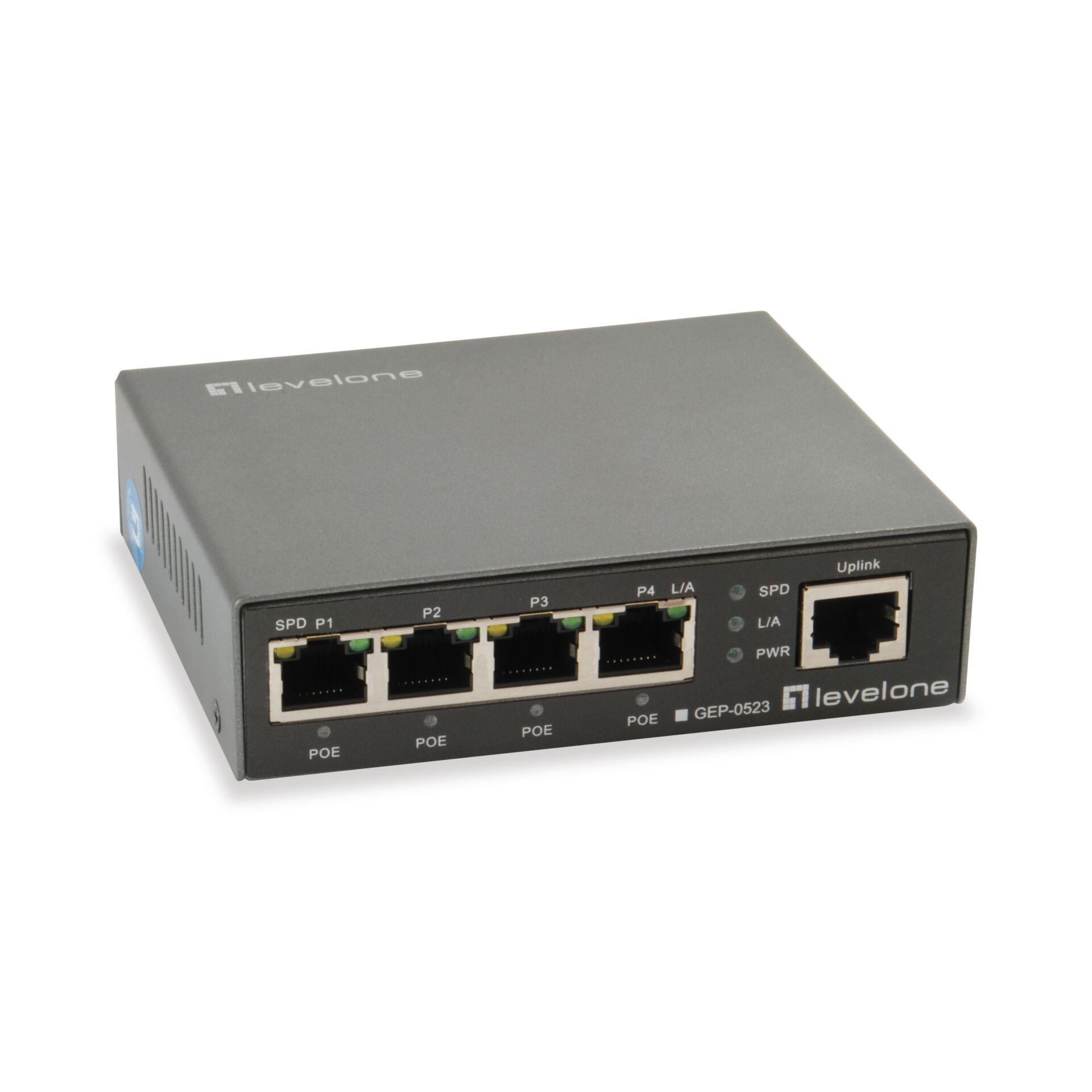

LevelOne GEP-0523 5-Port-Gigabit-PoE-Switch

Τεχνικές προδιαγραφές

Γενικά

Device Type

Switch
5 ports

Enclosure Type

Desktop

Subtype

Gigabit Ethernet

Ports

4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (uplink)

Power Over Ethernet (PoE)

PoE+

PoE Budget

60 W

Εκτέλεση

Backplane speed: 10 Gbps

MAC Address Table Size

8K entries

Jumbo Frame Support

9216 bytes

Χαρακτηριστικά

Flow control, auto-negotiation, packet filtering, store and forward, half duplex mode, full duplex mode, 1MB packet buffer, Power Sourcing Equipment (PSE), PoE circuit sorting protection

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at

Status Indicators

Port transmission speed, power, PoE, link/activity, link/activity/speed

Συνδεσιμότητα

Interfaces

4 x 1000Base-T RJ-45 PoE+
30 W ¦ 1 x 1000Base-T RJ-45 uplink

Power

Συσκευή ισχύος

External power adapter

Power Provided

65 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

5 Watt

Χαρακτηριστικά

Overload Current Protection

Miscellaneous

MTBF

30,000 hours

Compliant Standards

FCC

Διαστάσεις & Βάρος

Πλάτος

110.2 cm

Βάθος

95.7 cm

Ύψος

3 cm

Βάρος

750 g

Περιβαλλοντικές παράμετροι

Min Operating Temperature

-20 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5
90% (non-condensing)

Min Αποθήκευση Temperature

-20 °C

Max Αποθήκευση Temperature

70 °C

Humidity Range Αποθήκευση

5
90% (non-condensing)
