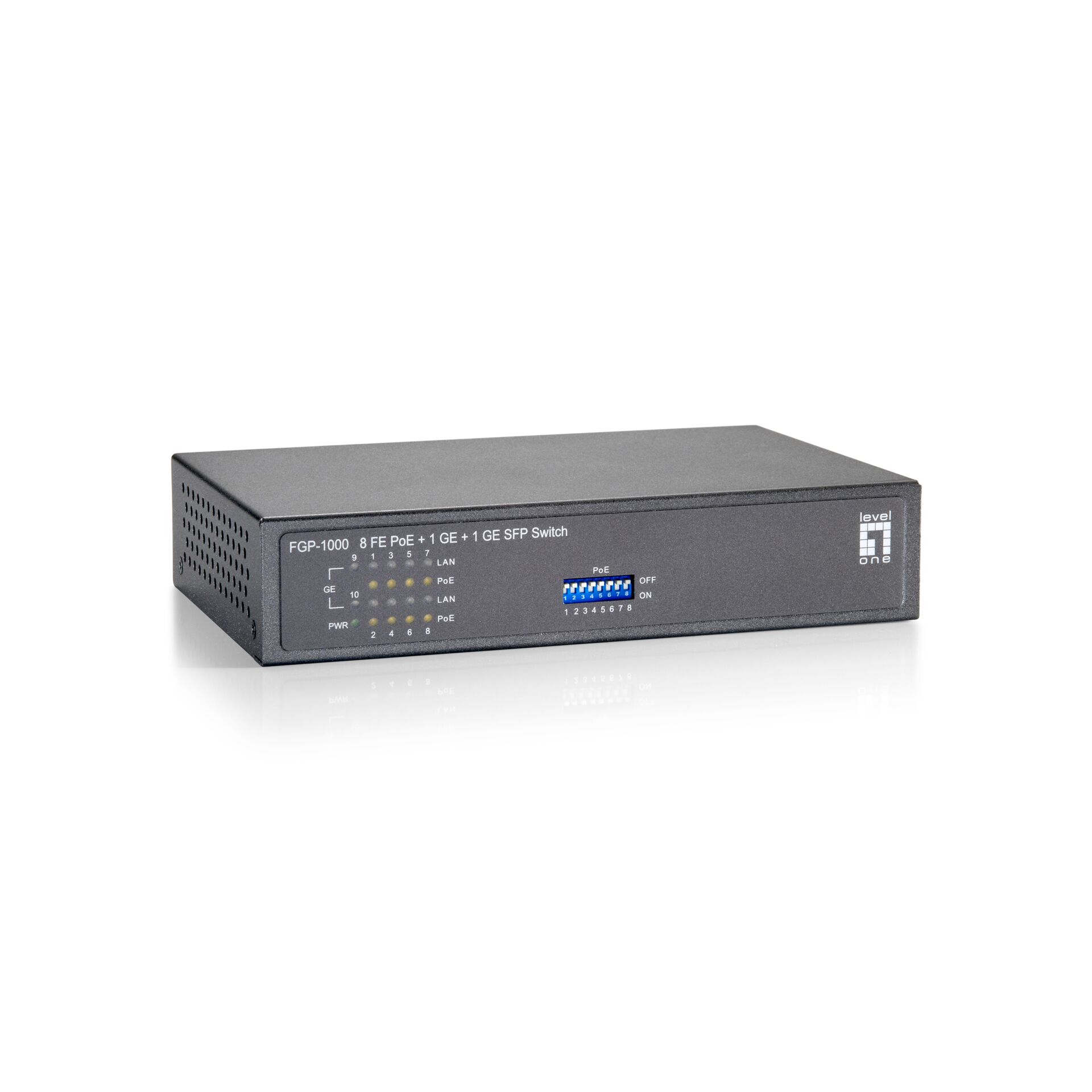

LevelOne FGP-1000 10-Port-Fast Ethernet-PoE-Switch

Τεχνικές προδιαγραφές

Γενικά

Device Type

Switch
8 ports

Enclosure Type

Desktop, wall-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100 (PoE+) + 1 x 10/100/1000 + 1 x Fast Ethernet/Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

120 W

Εκτέλεση

Backplane switching capacity: 5.6 Gbps ¦ Forwarding performance: 1488000 pps

MAC Address Table Size

4K entries

Χαρακτηριστικά

Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, over-current protection, 512KB packet buffer, built-in DIP switch

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Status Indicators

Port transmission speed, power, active, PoE

Συνδεσιμότητα

Interfaces

8 x 100Base-TX RJ-45 PoE+
30 W ¦ 1 x 1000Base-T RJ-45 ¦ 1 x SFP

Power

Συσκευή ισχύος

External power adapter

Power Provided

120 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

120 Watt

Miscellaneous

Compliant Standards

FCC

Διαστάσεις & Βάρος

Πλάτος

18.8 cm

Βάθος

11.8 cm

Ύψος

3.8 cm

Βάρος

1.2 kg

Περιβαλλοντικές παράμετροι

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10
90% (non-condensing)

Min Αποθήκευση Temperature

-40 °C

Max Αποθήκευση Temperature

70 °C

Humidity Range Αποθήκευση

10
90% (non-condensing)
